Resetting SSH Credentials

TLDR

Purpose: Regain SSH access to your StorageLink VM after losing your private key, getting locked out, or losing the admin password.

By Cloud:

  • AWS: Stop the EC2 instance and inject a back-door SSH user via UserData

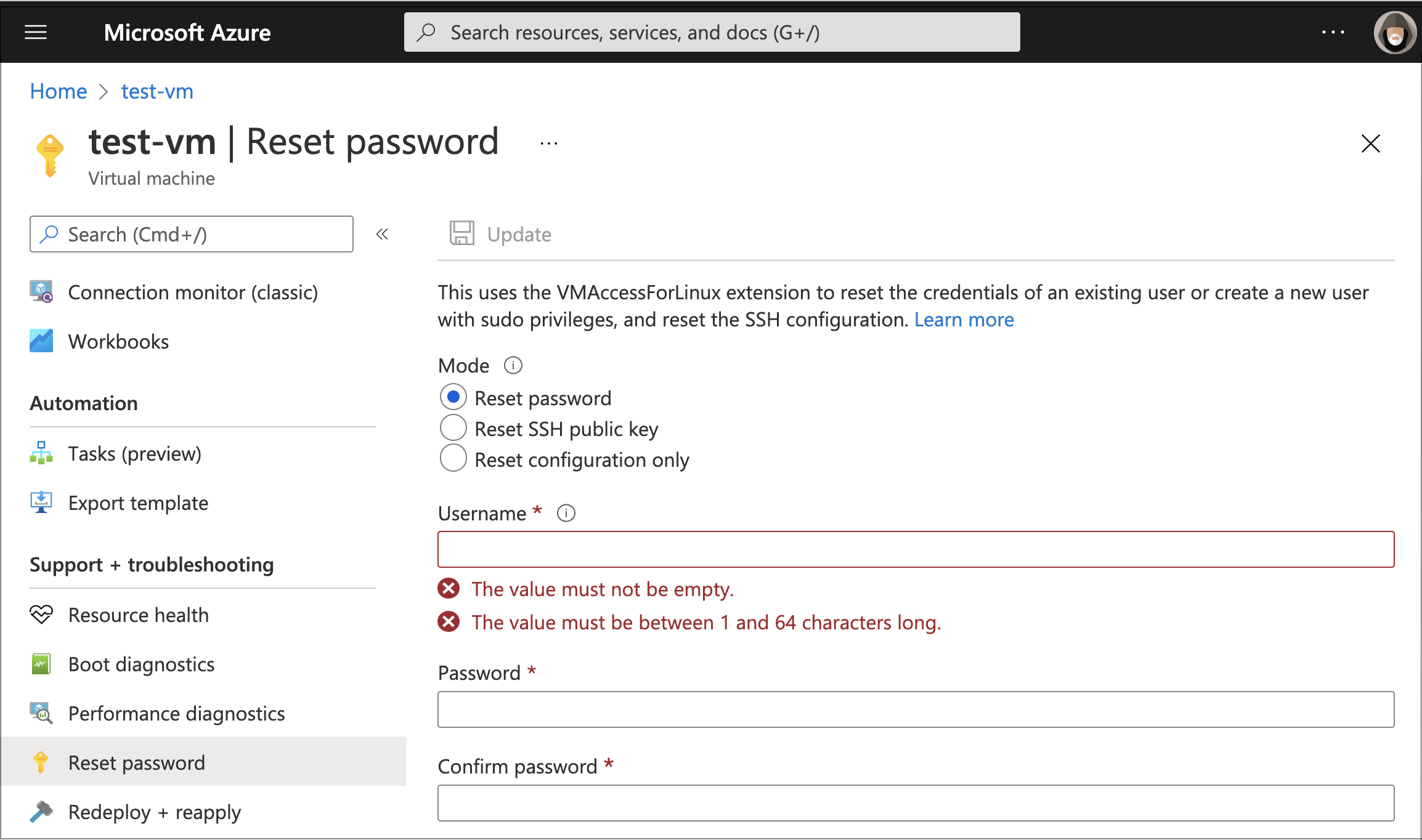

  • Azure: Use the Azure Portal Reset password option on the VM
  • Google: Add a new SSH key under the VM's Security and access settings

HA Note (AWS): UserData injection is for single instances only. For HA / AutoScaling Groups, use SSM or contact support.

Product: StorageLink by Thorn Technologies — cloud storage gateway for secure file sharing

Overview​

If you lose SSH access to your StorageLink VM, you can regain access without reinstalling the system. The procedure varies by cloud provider — select your platform below.

There are a couple of ways you can lock yourself out of your EC2 instance.

  • You lose your SSH private key
  • The ec2-user gets corrupted somehow
  • The ec2-user password expires

Fortunately, there are ways to get back into your EC2 instance. The least invasive approach is to modify the UserData. There's a really good AWS article that describes how to do this. Below, I'll go over the steps you need to do this.

Note: This method is only used for Single Instances that have no UserData content. If you're in an HA setup with an AutoScaling Group, you can use SSM to inject new credentials or contact us at support@thorntech.com for assistance.

Create a back-door user via User Data​

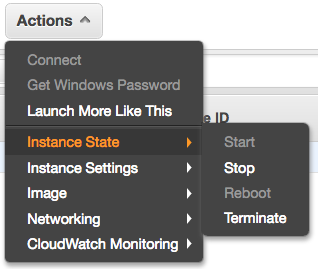

First, you need to stop your EC2 instance. Go to EC2 > Actions > Instance State > Stop

Screen Shot 2018-03-07 at 1.13.27 PM.png

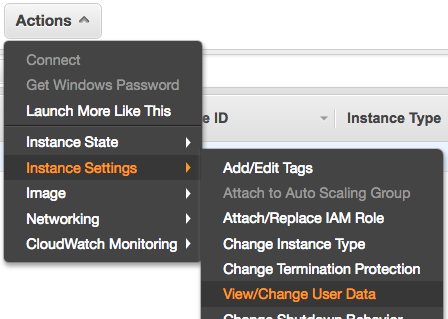

Second, edit the UserData. Go to EC2 > Actions > Instance Settings > View/Change User Data.

Screen Shot 2018-03-07 at 1.09.25 PM.png

Third, paste in the following code snippet (replacing everything that's already there)

Content-Type: multipart/mixed; boundary="//"
MIME-Version: 1.0

--//
Content-Type: text/cloud-config; charset="us-ascii"
MIME-Version: 1.0
Content-Transfer-Encoding: 7bit
Content-Disposition: attachment; filename="cloud-config.txt"

#cloud-config
cloud_final_modules:
- [scripts-user, always]

--//
Content-Type: text/x-shellscript; charset="us-ascii"
MIME-Version: 1.0
Content-Transfer-Encoding: 7bit
Content-Disposition: attachment; filename="userdata.txt"

#!/bin/bash
USER=robtest #1
adduser $USER #2
echo "$USER ALL=(ALL) NOPASSWD:ALL" >> /etc/sudoers.d/cloud-init #3
mkdir /home/$USER/.ssh #4
echo "ssh-rsa AAAAB3NzaC1yc2EAAA....A38MHe0KAzY9Ob private.key" >> /home/$USER/.ssh/authorized_keys #5
--//

UserData gets called once on first launch. The first 20 lines of code forces the EC2 instance to run the bash script at the bottom for every launch.

This is what the bash script is doing:

  1. You're creating a user named robtest. Be sure to replace this with a username of your choice.
  2. You create a regular Linux user (this is not a StorageLink Web User)
  3. You grant this user sudo access, just like how ec2-user has sudo access
  4. Create a .ssh directory. This needs to exist before you can create the authorized_keys file
  5. You append a public key to /home/robtest/.ssh/authorized_keys. Make sure you replace the contents of the public key.

To generate a public key, run the following command on your local Mac:

ssh-keygen -t rsa -C private.key -f private.key -q -N ""

This generates two files:

  • private.key: You'll use this to ssh -i into the instance momentarily. (Be sure to chmod 600 it)
  • private.key.pub: This is the public key, whose contents you paste into the bash script above.

Finally, hit Save.

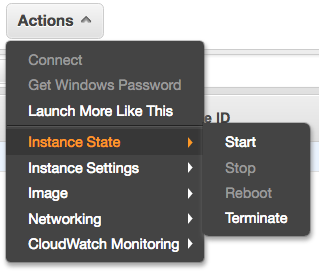

Start your EC2 instance again: Go to EC2 > Actions > Instance State > Start

Screen Shot 2018-03-07 at 1.08.29 PM.png

If all goes well, you should be able to SSH using your new username.

Cleanup​

If everything is working, make sure you delete your UserData so that it doesn't keep running on subsequent launches. Like before, you'll have to stop your instance in order to make the change.
