Deploy SFTP Gateway on Kubernetes

Overview

In this article we'll walk through deploying SFTP Gateway as a containerized application. This involves downloading zip files of our backend & admin-ui docker images, and loading them into your local docker image list.

From there, you will upload these images to your GCP Artifact Registry. A kubernetes manifest file will reference your Artifact Registry images, and deploy the SFTP Gateway containers.

Afterwards, you're able to access your deployment by navigating to your web browser and creating your initial Web Admin account.

Note: The SFTP Gateway container image is in beta. You are restricted to a single SFTP user, and the license on the beta container expires in a year. The purpose of this beta is for testing, and providing feedback which you can send to support@thorntech.com.

Create local docker images

The first step involves downloading our docker image zip files in the form of an S3 link.

SFTP Gateway backend image zip file: https://sftpgateway-container-beta.s3.us-east-1.amazonaws.com/sftpgw-docker-images-version-3.8.0-snapshot.202508300318/sftpgateway-backend.tar.gz

SFTP Gateway admin-ui image zip file: https://sftpgateway-container-beta.s3.us-east-1.amazonaws.com/sftpgw-docker-images-version-3.8.0-snapshot.202508300318/sftpgateway-admin-ui.tar.gz

Once you've downloaded the zip files, using the command line/terminal, load them into your docker image list using the following commands:

# Load backend image
gzcat sftpgateway-backend.tar.gz | docker load

# Load admin UI image
gzcat sftpgateway-admin-ui.tar.gz | docker load

Verify that these images are pulled into your local docker:

docker image list

Push these containers to GCP Artifact Registry

If you don't have one already, create a new Artifact Registry in GCP.

Next, tag the images with the Artifact Registry destination:

docker tag 92b1fff4c636 us-east1-docker.pkg.dev/sftp-gateway/rob-sftpgw-test/sftpgateway-backend:v1.1
docker tag 7e5001fa87b9 us-east1-docker.pkg.dev/sftp-gateway/rob-sftpgw-test/sftpgateway-admin-ui:v1.1

The purpose of the tag is to determine the destination where the image gets pushed. Kind of like an address label.

Here is a breakdown of the commands:

  • docker tag: You are apply a tag to the image
  • 92b1fff4c636: This is the Image ID, which you can get from the docker image list command.
  • us-east1: This is the region of the Artifact Registry
  • sftp-gateway: This is the GCP project. Replace this with your own project.
  • rob-sftpgw-test: This is the name of the Artifact Registry
  • sftpgateway-backend: This is the name of the Package within the Artifact Registry
  • v1.1: This is the tag for the image version

After you have tagged these images, push them to your Artifact Registry.

docker push us-east1-docker.pkg.dev/sftp-gateway/rob-sftpgw-test/sftpgateway-backend:v1.1
docker push us-east1-docker.pkg.dev/sftp-gateway/rob-sftpgw-test/sftpgateway-admin-ui:v1.1

Apply the Kubernetes manifest

You may already have your own kubernetes cluster.

But in this basic example, I’m using autopilot. Here is the command used to deploy it:

gcloud container clusters create-auto rob-cluster --region=us-east1

On your local workstation (or in the GCP cloud shell), create the following file:

kubernetes-manifest.yaml

(See the contents of this file at the bottom of this document)

You will need to make the following changes to the file:

  • On line 158: image: us-east1-docker.pkg.dev/sftp-gateway/rob-sftpgw-test/sftpgateway-backend:v1.1
  • On line 336: image: us-east1-docker.pkg.dev/sftp-gateway/rob-sftpgw-test/sftpgateway-admin-ui:v1.1

Make sure you are pointing to the image in your own Artifact Registry.

Optional: Make changes to these other values:

  • On line 58: The POSTGRES_PASSWORD is hard-coded to sftpgw. You want to use a more secure value.
  • On line 171: The SPRING_DATASOURCE_PASSWORD is hard-coded to sftpgw. Set this to the same secure value you set above.
  • Consider changing the SECURITY_CLIENT_ID and SECURITY_CLIENT_SECRET values
  • Consider changing the website.crt and website.key with your own SSL certificate

Once you have made the appropriate changes, deploy the kubernetes manifest file:

kubectl apply -f kubernetes-manifest.yaml

What did I just deploy

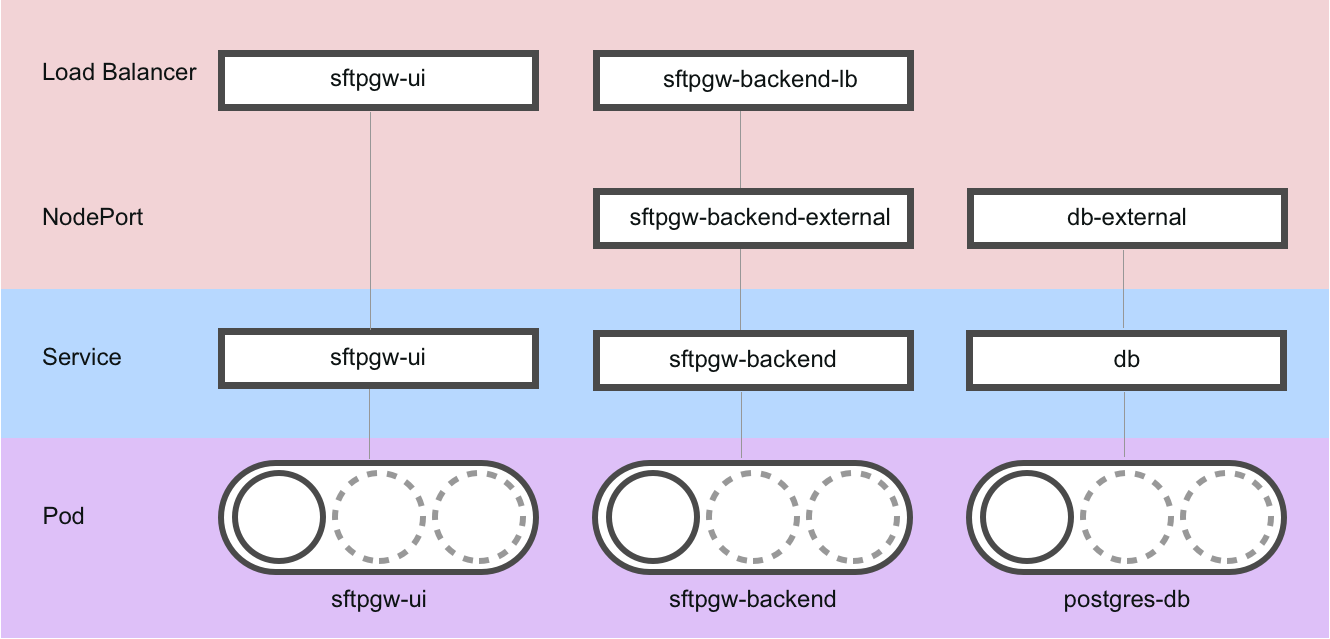

The kubernetes manifest file deploys the following resources:

kubernetes

Starting with the bottom of the diagram, there is are 3 pods that are deployed (shown in purple):

  • sftpgw-ui: This is the web admin portal running on a web server.
  • sftpgw-backend: This is the SFTP server, running on a Java backend
  • postgres-db: This is the postgres database

These pods are abstracted away in service layers (shown in blue):

  • sftpgw-ui
  • sftpgw-backend
  • db

For the services that are user-facing, there are load balancers you can connect to (shown in pink):

  • sftpgw-ui
  • sftpgw-backend-lb

Run the following command to get a list of pods:

kubectl get pods -n sftpgw

NAME                              READY   STATUS    RESTARTS   AGE
postgres-db-5b7b7446b9-tk76l      1/1     Running   0          21m
sftpgw-backend-79fdc45c97-grr8b   1/1     Running   0          21m
sftpgw-ui-76d6d557c7-bvkl7        1/1     Running   0          21m

How to connect to the web admin portal

Run the following command to get a list of services:

kubectl get service -n sftpgw

NAME                      TYPE           CLUSTER-IP       EXTERNAL-IP      PORT(S)                       AGE
db                        ClusterIP      34.118.232.175   <none>           5432/TCP                      3h26m
db-external               NodePort       34.118.239.114   <none>           5432:30455/TCP                3h26m
sftpgw-backend            ClusterIP      34.118.231.200   <none>           8080/TCP,22/TCP               3h26m
sftpgw-backend-external   NodePort       34.118.228.15    <none>           8080:30080/TCP,22:30244/TCP   3h26m
sftpgw-backend-lb         LoadBalancer   34.118.226.57    34.139.141.133   22:31327/TCP                  3h26m
sftpgw-ui                 LoadBalancer   34.118.234.34    34.74.250.188    80:31773/TCP,443:30730/TCP    3h26m

In the above output, make special note of the EXTERNAL-IP column:

  • sftpgw-ui: This is the public IP for connecting to the web admin portal. In this example, it’s 34.74.250.188
  • sftpgw-backend-lb: This is the public IP for connecting to the SFTP service. In this example, it’s 34.139.141.133

Paste the sftpgw-ui EXTERNAL-IP (e.g. 34.74.250.188) into your web browser.

You should see the SFTP Gateway web admin portal.

In order to test this beta, make the following changes:

  • Create a web admin user and password
  • Log in as this web admin user
  • Go to the Settings tab and create a new Cloud Connection to a GCS bucket
  • Go to the Folders tab and point the root folder to the Cloud Connection you just created
  • Go to the Users tab and create a new SFTP user

How to connect to the SFTP service

The SFTP service is hosted on the Java backend.

And in order to connect to the SFTP service, you will need to go through the load balancer.

In the above list of services, find the sftpgw-backend-lb and look at the EXTERNAL-IP. In my example, it’s 34.139.141.133

You can connect to this load balancer public IP on port 22:

sftp robtest@34.139.141.133

You should be prompted for a server fingerprint, and then connect via SFTP if your credentials are correct.

The kubernetes manifest file

# Namespace
apiVersion: v1
kind: Namespace
metadata:
  name: sftpgw
---
# PostgreSQL PersistentVolumeClaim
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-data-pvc
  namespace: sftpgw
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
---
# SFTP Home PersistentVolumeClaim
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: sftpgw-home-pvc
  namespace: sftpgw
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi
---
# PostgreSQL Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres-db
  namespace: sftpgw
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres-db
  template:
    metadata:
      labels:
        app: postgres-db
    spec:
      containers:
      - name: postgres
        image: postgres:16-alpine
        env:
        - name: POSTGRES_DB
          value: "sftpgw"
        - name: POSTGRES_USER
          value: "sftpgw"
        - name: POSTGRES_PASSWORD
          value: "sftpgw"
        - name: PGDATA
          value: "/var/lib/postgresql/data/pgdata"
        - name: POSTGRES_INITDB_ARGS
          value: "--data-checksums"
        - name: POSTGRES_LOGGING
          value: "on"
        ports:
        - containerPort: 5432
        volumeMounts:
        - name: postgres-storage
          mountPath: /var/lib/postgresql/data
        livenessProbe:
          exec:
            command:
            - pg_isready
            - -U
            - sftpgw
            - -d
            - sftpgw
          initialDelaySeconds: 30
          periodSeconds: 10
          timeoutSeconds: 5
          failureThreshold: 3
        readinessProbe:
          exec:
            command:
            - pg_isready
            - -U
            - sftpgw
            - -d
            - sftpgw
          initialDelaySeconds: 5
          periodSeconds: 5
          timeoutSeconds: 5
          failureThreshold: 5
        resources:
          requests:
            memory: "256Mi"
            cpu: "250m"
          limits:
            memory: "512Mi"
            cpu: "500m"
      volumes:
      - name: postgres-storage
        persistentVolumeClaim:
          claimName: postgres-data-pvc
      restartPolicy: Always
---
# PostgreSQL Service
apiVersion: v1
kind: Service
metadata:
  name: db
  namespace: sftpgw
spec:
  selector:
    app: postgres-db
  ports:
  - port: 5432
    targetPort: 5432
  type: ClusterIP
---
# PostgreSQL NodePort Service (for external access like port 5455)
apiVersion: v1
kind: Service
metadata:
  name: db-external
  namespace: sftpgw
spec:
  selector:
    app: postgres-db
  ports:
  - port: 5432
    targetPort: 5432
    nodePort: 30455
  type: NodePort
---
# SFTP Gateway Backend Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: sftpgw-backend
  namespace: sftpgw
spec:
  replicas: 1
  selector:
    matchLabels:
      app: sftpgw-backend
  template:
    metadata:
      labels:
        app: sftpgw-backend
    spec:
      securityContext:
        runAsUser: 1000
        runAsGroup: 1000
        fsGroup: 1000
      containers:
      - name: sftpgw-backend
        image: us-east1-docker.pkg.dev/sftp-gateway/rob-sftpgw-test/sftpgateway-backend:v1.1
        env:
        - name: SECURITY_CLIENT_ID
          value: "1234"
        - name: SECURITY_CLIENT_SECRET
          value: "1234"
        - name: SECURITY_JWT_SECRET
          value: "b03c367c-a16c-4a43-9d47-8ff73462179e"
        - name: SPRING_DATASOURCE_URL
          value: "jdbc:postgresql://db:5432/sftpgw"
        - name: SPRING_DATASOURCE_USERNAME
          value: "sftpgw"
        - name: SPRING_DATASOURCE_PASSWORD
          value: "sftpgw"
        - name: SFTP_HOST_ADDRESS
          value: "0.0.0.0"
        - name: SERVER_PORT
          value: "8080"
        - name: AWS_REGION
          value: "us-east-1"
        - name: SPRING_PROFILES_ACTIVE
          value: "local"
        - name: LOGGING_LEVEL_ROOT
          value: "INFO"
        - name: LOGGING_LEVEL_COM_THORNTECH
          value: "DEBUG"
        ports:
        - containerPort: 8080
        - containerPort: 22
        volumeMounts:
        - name: sftpgw-home
          mountPath: /home/sftpgw
        workingDir: /opt/sftpgw
        command: ["java", "-jar", "application.jar"]
        resources:
          requests:
            memory: "512Mi"
            cpu: "500m"
          limits:
            memory: "1Gi"
            cpu: "1000m"
        livenessProbe:
          httpGet:
            path: /actuator/health
            port: 8080
          initialDelaySeconds: 60
          periodSeconds: 30
          timeoutSeconds: 10
        readinessProbe:
          httpGet:
            path: /actuator/health
            port: 8080
          initialDelaySeconds: 30
          periodSeconds: 10
          timeoutSeconds: 5
      volumes:
      - name: sftpgw-home
        persistentVolumeClaim:
          claimName: sftpgw-home-pvc
      restartPolicy: Always
---
# SFTP Gateway Backend Service
apiVersion: v1
kind: Service
metadata:
  name: sftpgw-backend
  namespace: sftpgw
spec:
  selector:
    app: sftpgw-backend
  ports:
  - name: http
    port: 8080
    targetPort: 8080
  - name: sftp
    port: 22
    targetPort: 22
  type: ClusterIP
---
# SFTP Gateway Backend External Service
apiVersion: v1
kind: Service
metadata:
  name: sftpgw-backend-external
  namespace: sftpgw
spec:
  selector:
    app: sftpgw-backend
  ports:
  - name: http
    port: 8080
    targetPort: 8080
    nodePort: 30080
  - name: sftp
    port: 22
    targetPort: 22
    nodePort: 30244
  type: NodePort
---
# ConfigMap for UI certificates
apiVersion: v1
kind: ConfigMap
metadata:
  name: ui-certs
  namespace: sftpgw
data:
  website.crt: |
    -----BEGIN CERTIFICATE-----
    MIID4zCCAsugAwIBAgIUd2Q6F9G4dGxIqLd8cS6ltLeDpk4wDQYJKoZIhvcNAQEL
    BQAwZDELMAkGA1UEBhMCVVMxEzARBgNVBAgMCkNhbGlmb3JuaWExFjAUBgNVBAcM
    DVNhbiBGcmFuY2lzY28xFDASBgNVBAoMC0RldmVsb3BtZW50MRIwEAYDVQQDDAls
    b2NhbGhvc3QwHhcNMjQxMTE3MDMwMzE4WhcNMjUxMTE3MDMwMzE4WjBkMQswCQYD
    VQQGEwJVUzETMBEGA1UECAwKQ2FsaWZvcm5pYTEWMBQGA1UEBwwNU2FuIEZyYW5j
    aXNjbzEUMBIGA1UECgwLRGV2ZWxvcG1lbnQxEjAQBgNVBAMMCWxvY2FsaG9zdDCC
    ASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBALY7NVKDdmGj0FLUY/mBjyvn
    KQiF22bNxq56HTIKawjHxV70W+CBzPv2d2wNI4e4vOqTDCKOUbPKKPXX1vNu2u1l
    McVQNwxR2xG4zsDj9WzX3Z782F6qmHi+hqsVbFgVdOxj4xjMOTeodwjNL2K4ylMi
    Vn13M7Yj1qqPfXVRZgfcSuVmLpIadz5TAif4NhB6SBodg+jjeynGJLkS80kV13W9
    bpu1JNcTFEaEB+E0RijdZ2BrUUaOaNF8wOP0Zk50v5t0M9uBfd9O0sDemzxesyWF
    +pLANFkEPYiRCdn7epF1qZZer2uqbS15RhFyvfKfkZK0vx4vC/qcDKpI9CPg6t0C
    AwEAAaOBjDCBiTAdBgNVHQ4EFgQUc31/aqt6ZE22MrD4JmpNZP8UNZswHwYDVR0j
    BBgwFoAUc31/aqt6ZE22MrD4JmpNZP8UNZswDwYDVR0TAQH/BAUwAwEB/zAUBgNV
    HREEDTALgglsb2NhbGhvc3QwCwYDVR0PBAQDAgeAMBMGA1UdJQQMMAoGCCsGAQUF
    BwMBMA0GCSqGSIb3DQEBCwUAA4IBAQAGtPbCCjw3ckDncp3UD32X9dfDLWZnvXRi
    jsZ0kpLu3O1A+AJb7HGdeV7TB13DU6DvlHfPMExI8LPaybiLbAB5yO3pIYueoacc
    y6QK3s8AbtubWMROOeICBe6WVh63nzoPk3LjgyDk16Nm84VQequIGGJ3PlXZzXjZ
    PVlEEPryg8s6U8iY7z/HHXse4CytMrEB9last5Z3TBgNqTT5Uiqw9zAhb4L6oHwW
    zE99hgVx5G5eAVeziPY5Hy1xYY7/G6EXmdpRWI5BbJO4kKN0RFS03b8iGkgiwHvp
    24Yi6PfMCT1WSNQ9OEIjsAaQIKJikH1xww46y0oEn/wc2BBCgcOO
    -----END CERTIFICATE-----
  website.key: |
    -----BEGIN PRIVATE KEY-----
    MIIEvAIBADANBgkqhkiG9w0BAQEFAASCBKYwggSiAgEAAoIBAQC2OzVSg3Zho9BS
    1GP5gY8r5ykIhdtmzcaueh0yCmsIx8Ve9Fvggcz79ndsDSOHuLzqkwwijlGzyij1
    19bzbtrtZTHFUDcMUdsRuM7A4/Vs192e/Nheqph4voarFWxYFXTsY+MYzDk3qHcI
    zS9iuMpTIlZ9dzO2I9aqj311UWYH3ErlZi6SGnc+UwIn+DYQekgaHYPo43spxiS5
    EvNJFdd1vW6btSTXExRGhAfhNEYo3Wdga1FGjmjRfMDj9GZOdL+bdDPbgX3fTtLA
    3ps8XrMlhfqSwDRZBD2IkQnZ+3qRdamWXq9rqm0teUYRcr3yn5GStL8eLwv6nAyq
    SPQj4OrdAgMBAAECggEAJUl2puhO1fo4o2YhgblUlAFj2EJZaw7iXyuN40IV9hE4
    Ta5WyViN2qVq+KE0mq3+e8n0UvLHfW/5UxpjuWI+qhIJbcv0w5DRMC5eIcJTIr8F
    siUe2bny4kvrzsBer6ROTRtAKcAJ2h1eo96mGj9g6MNPKrN0EYoCP9qF63YpGCTO
    zVpY7fIOxow2AHaiRlEblpRtJHMEL/DdcmxqvCvkREgjwQSWZKAL8Mu4dZKasYBy
    +nNV7vIudGmTciRuWJLgLayLXFil7OJME44PIktGlBNL3UgMM/oKCTM0qp8aA9DQ
    52dKWk9gI9I6mum+XnBMipQtBSFMyBHEoSb9dUytkQKBgQDonUUiz417NgO0fljE
    0GvrqNzk2RrJ50KMcLB6wdJoVx037qLJkHJJUeKsJeOqJfYOQ68PnusucEvSgR5N
    /69c1v5UfFASj+mVVtLaEsEEZ+MMSvYhSHq/Dlj4NdKaSkdcCxY8YoMN3fRNUTtY
    o3oOQWDn+43uqe1Wabr2TMxUzQKBgQDIjT5jNo9H27bkiXUV2t+a9KmGTu2FNE9F
    CtMrSAmpj+lCHPNJzwgP49KfGf+KerkZ/bslixhROXo0HXQ0Eyp+iduNmXKjEX/h
    rpj+HekN/cdHyQA64Kc8qHYbN+4VgksXk1hWXovhY99bg2bEtzX9D4mFbmdArGXA
    4eMNZfJuUQKBgACfAuM/6KHOmB3wRG5qHA+qCMT3q3Gkk3Hqjx4UzGoI6YQPuBGP
    uC5n8JIDG+OFbG3HUn1ZMEmUdS9ftuQAbchyroUtO82A4t/KNo/sguVvHZUX0iZu
    mh1OfYBULHbLAfvF785DeRQdZpyaPe1TqmzFUevsqQldHMwhRiWIOPd1AoGAYy6P
    Cwvhgj0jzxQ3xm4vJXgYGqcQCk9bYJ7A3mfK94OHbT3aB8eOiiU2dZ6q5TZaMoNs
    OV330bumNv3WCSbtXhUZcobPzduKrfbmDM6IAnZeRp8eMQAHVRVPC5j2csa0El25
    U0WA0h/NR3nNqj2dQqCbd1SpVa+sxt4vpuGjKnECgYASiNxDdbApD6F153Y56dO1
    PM17ujQ+sa0qZH+fdCKweBZ5xHN+I7VYf4zMJ630/7KWy9lwa4N8GWxNNGAEhWav
    7xqWNw2UCfb5BzsztIxSL60NSnqCzqvZP7OSboFS9X6lQKQ73bWyAtQuhG5ydALz
    0Bz/2SdeU40IbTl/wrpY2g==
    -----END PRIVATE KEY-----
---
# SFTP Gateway UI Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: sftpgw-ui
  namespace: sftpgw
spec:
  replicas: 1
  selector:
    matchLabels:
      app: sftpgw-ui
  template:
    metadata:
      labels:
        app: sftpgw-ui
    spec:
      containers:
      - name: sftpgw-ui
        image: us-east1-docker.pkg.dev/sftp-gateway/rob-sftpgw-test/sftpgateway-admin-ui:v1.1
        env:
        - name: BACKEND_URL
          value: "http://sftpgw-backend:8080/"
        - name: SECURITY_CLIENT_ID
          value: "1234"
        - name: SECURITY_CLIENT_SECRET
          value: "1234"
        - name: CLOUD_PROVIDER
          value: "aws"
        - name: WEBSITE_BUNDLE_CRT
          valueFrom:
            configMapKeyRef:
              name: ui-certs
              key: website.crt
        - name: WEBSITE_KEY
          valueFrom:
            configMapKeyRef:
              name: ui-certs
              key: website.key
        ports:
        - containerPort: 80
        - containerPort: 443
        resources:
          requests:
            memory: "128Mi"
            cpu: "100m"
          limits:
            memory: "256Mi"
            cpu: "200m"
        livenessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 30
          periodSeconds: 30
        readinessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 10
          periodSeconds: 10
      restartPolicy: Always
---
# SFTP Gateway UI Service
apiVersion: v1
kind: Service
metadata:
  name: sftpgw-ui
  namespace: sftpgw
spec:
  selector:
    app: sftpgw-ui
  ports:
  - name: http
    port: 80
    targetPort: 80
  - name: https
    port: 443
    targetPort: 443
  type: LoadBalancer
---
# Trying to reach the SFTP service
apiVersion: v1
kind: Service
metadata:
  name: sftpgw-backend-lb
  namespace: sftpgw
spec:
  selector:
    app: sftpgw-backend
  ports:
  - name: sftp
    port: 22
    targetPort: 22
    protocol: TCP
  type: LoadBalancer
← PreviousNext →
